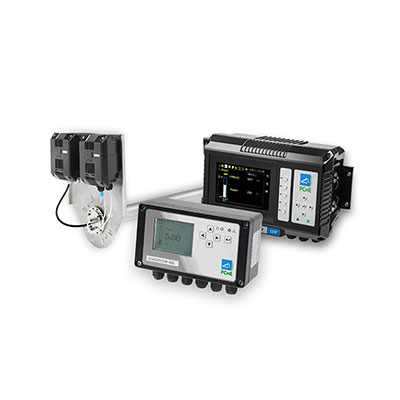

Approved Flue Gas Velocity CEM for stack velocity, volumetric flow and pollutant mass release calculations when linked to Gas and Dust CEMS.
Features & Benefits
- Continuous high-quality measurement of flue gas velocity, temperature and pressure
- Works in elevated temperatures and applications with high dust loadings
- Manual reference self-checks for quality assurance and regulatory compliance
- Sensor allows the connection of ENVEA gas analysers directly to the STACKFLOW 200 reducing the number of ports required for other individual CEMs packages
Main applications
Stack velocity, volumetric flow and pollutant mass release calculations (when linked to gas and dust CEMS)
Typical Applications:
- Incineration
- Metals (eg Steel/Aluminium)
- Minerals (eg Cement/Gypsum)
- li>Chemicals (eg Refinery / Rubber)
- Power Generation Plant (eg Coal/Biomass)
| TECHNICAL SPECIFICATIONS |
| Measured parameters |
Flue-gas velocity |
| Technology |
ProPitot™ Averaging Pitot |
| Measurement/Monitoring capability |
3 – 50 m/s* |
| Stack/Duct diameter suitability |
up to 8m |
| Flue gas temperature |
up to 800°C |
| Baghouse |
YES |
| Cartridge Filter |
YES |
| Ceramic Filter |
YES |
| Coalescent Filter |
YES |
| Cyclone |
YES |
| Electrostatic Precipitator (ESP) |
YES |
| Wet Electrostatic Precipitator (WESP) |
YES |
| Wet Scrubber |
YES |
| Sensor variants |
Stainless Steel |
| QA checks |
YES |
*Application dependant
| TECHNICAL DATA |
| Measurement capability |
3 – 50 m/s |
| Resolution |
0.1 m/s |
| Sensor Variants |
0.6m, 1.0m, 1.5m probe lengths |
| Sensor Material |
316 Stainless Steel |
| Stack Temperature Ranges |
-20°C – 800°C |
| Functionality and QA Checks |
Manual reference checks |
| Data Output |
RS485 (Modbus) output to Controller |
| Enclosure Protection Rating |
IP65 |
Approvals & Certifications
- MCERTS & TÜV (UBA) certified to EN15267-3
- QAL1 as defined by EN14181
- QAL3 compliance to EN14181
- Complies with US EPA PS-6
Documentation
envea_stackflow-200_datasheet_flue-gas-velocity-measurement-system_en
